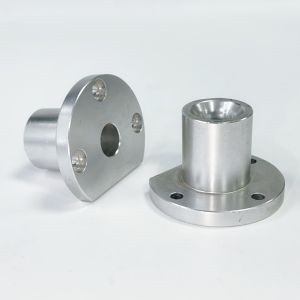

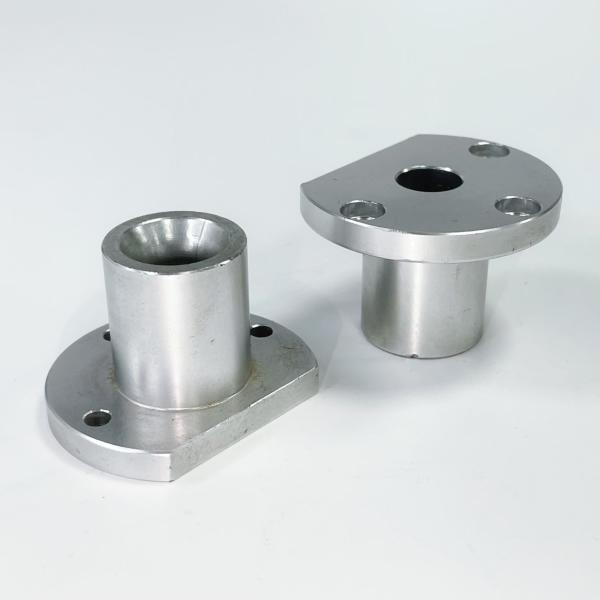

Stainless Steel Ring Sleeve, Bearing Tube, Flange Sleeve Are Processed By CNC
Product Overview
CNC-machined stainless steel ring sleeves, bearing tubes, and flange sleeves with high precision, durability, and corrosion resistance for industrial applications.
Key Features
- Material: High-quality stainless steel (e.g., 304, 316)
- Process: CNC turning/milling for tight tolerances & smooth finishes
- Applications: Machinery, automotive, aerospace, and fluid systems
- Advantages: Wear-resistant, long service life, customizable dimensions
Typical Uses
- Shaft protection (ring sleeves)
- Rotating assemblies (bearing tubes)
- Pipe/valve connections (flange sleeves)
CNC-Machined Stainless Steel Components – Technical Parameters
| Parameter | Ring Sleeve | Bearing Tube | Flange Sleeve |
| Material | SS 304/316/316L | SS 304/316/316L | SS 304/316/316L |
| Outer Diameter | 10–200 mm (±0.05 mm) | 5–150 mm (±0.03 mm) | 20–300 mm (±0.1 mm) |
| Inner Diameter | 5–180 mm (±0.05 mm) | 4–140 mm (±0.03 mm) | 15–280 mm (±0.1 mm) |
| Length/Thickness | 5–100 mm (±0.1 mm) | 10–500 mm (±0.1 mm) | 5–50 mm (±0.2 mm) |
| Surface Finish | Ra 0.8–3.2 μm | Ra 0.8–3.2 μm | Ra 1.6–6.3 μm |
| Tolerance | ISO 2768-medium | ISO 2768-fine | ISO 2768-medium |
| Hardness | 150–200 HB | 160–220 HB | 150–190 HB |
| Max. Temperature | 800°C (1472°F) | 800°C (1472°F) | 800°C (1472°F) |
| Process | CNC Turning/Milling | CNC Turning | CNC Turning/Milling |
| Certifications | ISO 9001, RoHS | ISO 9001, RoHS | ISO 9001, RoHS |
FAQ
1. What materials do you use?
We primarily use 304, 316, and 316L stainless steel for corrosion resistance and durability. Other grades (e.g., 303, 17-4PH) are available upon request.
2. What tolerances can you achieve?
-
Standard: ±0.05–0.1 mm (ISO 2768-medium/fine).
-
Tighter tolerances (e.g., ±0.01 mm) are possible for critical dimensions.
3. Can you customize parts?
Yes! We offer:
-
Custom sizes, thicknesses, and hole patterns.
-
Special surface finishes (e.g., mirror polish, sandblasting).
-
Additional features (threads, grooves, knurling).
4. What’s the lead time?
5. How do you ensure quality?
-
CNC machining with ISO 9001-certified processes.
-
Dimensional checks (CMM, calipers) and surface finish testing.
-
Material certifications (MTRs) provided.
6. Are your parts corrosion-resistant?
Yes! Stainless steel (especially 316/L) offers excellent resistance to rust, chemicals, and high temperatures (up to 800°C/1472°F).
7. What industries do you serve?
Common applications include:
-
Automotive (bushings, bearings).
-
Aerospace (flange connectors).
-
Hydraulics/Pneumatics (seal sleeves).
8. Do you provide coatings or treatments?
Options include:
-
Passivation (enhanced corrosion resistance).
-
Electropolishing (smoother surface).
-
Heat treatment (for hardness).
9. What’s the minimum order quantity (MOQ)?
10. How do I request a quote?
Send us:
-
Drawings (CAD/PDF preferred).
-
Material, quantity, and surface finish requirements.
-
Contact us at [Your Email/Phone] for a fast response!
